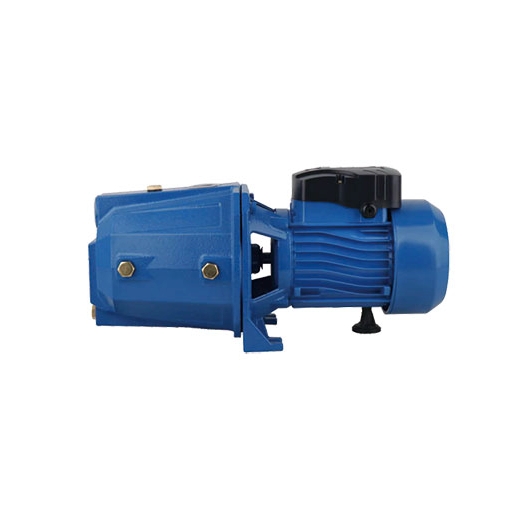

Maxmech Surface Water Pump 1HP Copper MJET-100

Maxmech Surface Water Pump 1HP Copper MJET-100

• Maxmech: A recognized brand in the Kenyan market, generally known for providing tools and machinery that offer a good balance of performance and affordability.
• Surface Water Pump: This pump is designed to be installed above the water source. It operates by drawing water up through a suction pipe (e.g., from a tank, shallow well, or borehole top) and then pushing it to its destination. It is not submersible.
• 1HP (Horsepower): This is the motor’s power rating, equivalent to 0.75 kW. It’s a robust power level for a surface pump, making it suitable for a wide range of tasks from boosting water pressure in homes to garden irrigation and small-scale water transfer.
• Copper (Winding): This is a critical quality indicator. It means the motor’s internal coils are made of 100% copper wire.
  • Benefits of Copper Windings:
    • Superior Conductivity: Copper is an excellent electrical conductor, leading to less energy loss as heat.
    • Higher Efficiency: More efficient energy conversion means lower electricity consumption over time, saving on running costs.
    • Lower Heat Generation: The motor runs cooler, significantly extending its lifespan and reducing the risk of thermal damage, especially during prolonged use.
    • Enhanced Durability & Longevity: Copper is more robust, resistant to corrosion, and less prone to oxidation compared to aluminum windings. This translates to a longer, more reliable operational life for the pump.
    • Better Power Density: Copper’s efficiency allows for a more compact motor design for the same power output.
• MJET-100: This is the specific model designation. The “JET” indicates that it’s a self-priming jet pump. Jet pumps are characterized by:
  • Their ability to handle some air in the suction line, making them easier to prime initially and less prone to losing prime if air gets into the system.
  • They use a venturi system (a jet of water) to enhance suction, giving them a better suction lift compared to standard centrifugal pumps.

Typical Performance Specifications (for a 1HP Jet Pump like the MJET-100):

• Maximum Head (Vertical Lift): Expect a good lift, typically ranging from 40 to 50 meters. This allows it to deliver water to higher floors in a building or over longer distances.
• Maximum Suction Lift: Around 8 to 9 meters. While it’s self-priming, for optimal performance, the pump should be installed as close to the water source as possible to minimize the suction lift.
• Maximum Flow Rate: The flow rate will be substantial for domestic use, typically around 50 to 60 liters per minute (L/min), or roughly 3,000 to 3,600 liters per hour.
• Inlet/Outlet Size: Commonly 1 inch x 1 inch, which is standard for domestic plumbing.
• Voltage: Single-phase 220V-240V AC (50Hz), compatible with standard household electricity in Kenya.
• Impeller Material: Often brass or Noryl (an engineered plastic), known for durability and resistance to wear. Some premium models might feature a stainless steel impeller.
• Pump Body: Typically cast iron (the “copper” refers to the motor windings). However, some “JET” pumps, like the USK JETS-100, might feature a stainless steel pump head for enhanced corrosion resistance. The Maxmech MJET-100 commonly has a cast iron head.
• IP Protection: Usually IP44 (splash-proof), suitable for sheltered outdoor or indoor installation.
• Thermal Overload Protection: Essential safety feature, built-in to protect the motor from overheating.

Common Applications:

• Household Water Supply: Ideal for boosting water pressure for a house with multiple bathrooms, supplying water to multi-story buildings from a storage tank, or drawing water from shallow wells/borehole tops.
• Filling Overhead Tanks: Efficiently transfers water from ground-level sources to high-level storage tanks.
• Garden and Small-Scale Irrigation: Can handle a significant number of sprinklers or drip irrigation lines.
• Boosting Municipal Water Pressure: Very effective in improving low or inconsistent municipal water pressure.
